The Canterbury Plains (in Māori, Kā Pākihi-whakatekateka-a-Waitaha) are the broad gravel lowland on the east coast of New Zealand’s South Island, running from the foot of the Hundalee Hills in North Canterbury south to the Waitaki River, between the Southern Alps and the Pacific, and centred on Mid Canterbury south of Christchurch. They were built by braided rivers, chiefly the Waimakariri, Rakaia, Selwyn and Rangitata, which spread gravel eroded from the Southern Alps across a series of overlapping fans during the ice ages of roughly the last 3 million years. They reach their widest where they meet the volcanic hills of Banks Peninsula, and they now hold most of Canterbury’s people, from Rangiora and Christchurch to Ashburton and Timaru.
The plains look simple from the road: flat paddocks, shelterbelts, wide grey riverbeds. Their story is not. It runs from deep-sea sediments laid down 300 million years ago, through a mountain range still rising and volcanoes long extinct, to rivers that jumped across the landscape within the last few thousand years. Taken in order from oldest to youngest, each stage explains a feature you can still see.
Torlesse greywacke, the Alpine Fault and the Banks Peninsula volcanoes: the raw material
The gravel of the Canterbury Plains comes from the Southern Alps east of the Alpine Fault, where the dominant rock is greywacke, the hard grey sandstone of the Torlesse Composite Terrane, named after the Torlesse Range in Canterbury. It began as sediment that turbidity currents carried down submarine canyons and spread over the deep seafloor as giant fans, between the Late Carboniferous and the Middle Cretaceous. Some of the mineral grains may have come from granites in north-eastern Australia. Two parts of the terrane meet in Canterbury: the Rakaia terrane, of Permian to late Triassic age (300 to 200 million years old), south of Rangiora, and the younger Pahau terrane, of Late Jurassic to Early Cretaceous age (160 to 100 million years old), to the north. Between them runs the Esk Head Belt, an 11 km wide mélange of broken, deformed rock.
Those rocks would still be buried if the Pacific and Australian plates had not collided. Over the last 45 million years that collision has pushed up a 20 km thickness of rock to form the Southern Alps, much of it since eroded away. Uplift has been fastest in the last 5 million years and still runs at about 10 mm a year, roughly matched by erosion. The Alpine Fault, about 600 km long, carries most of the plate motion sideways; it last ruptured in about 1717 along nearly 400 km, and a 2017 GNS Science study put the average interval between its great earthquakes at about 290 years. Aoraki / Mount Cook, the highest point in the range, stands at 3,724 m (12,218 ft).
The plains’ one large hard obstacle is volcanic. Between about 11 and 8 million years ago, in the Miocene, two large shield volcanoes, Lyttelton first and then Akaroa, rose as offshore islands to about 1,500 m above sea level; their remains now form the roughly 1,200 km² Banks Peninsula. Their eroded craters are now Lyttelton Harbour and Akaroa Harbour, and the crater rim between Lyttelton and Christchurch forms the Port Hills. Banks Peninsula stood as a volcanic island for millions of years, and the isthmus linking it to the plains emerged only in the last 20,000 years; that low, lake-filled neck is why James Cook mistook it for an island in 1770.
Ice-age gravel fans: how the Waimakariri, Rakaia and Rangitata built the plains
The plains themselves are made of Quaternary gravel. During the glacial periods of roughly the last 3 million years, ending about 10,000 years ago, valley glaciers ground down the greywacke of the Southern Alps and dumped it as moraine. Meltwater rivers then carried that debris out of the mountains and reworked it into vast shingle fans, each river building a low cone that merged with its neighbours along the coast. That is the structure of the plains today: a row of coalescing alluvial fans, steepest near the foothills and flattening towards the sea.
At the height of the last glaciation, about 20,000 years ago, sea level was some 130 m lower than today. The coast lay up to 50 km east of its present position, and the Canterbury Plains were about twice their present width. Glacial outwash rivers carried enormous quantities of sand, gravel and silt across that wider plain to the shore.

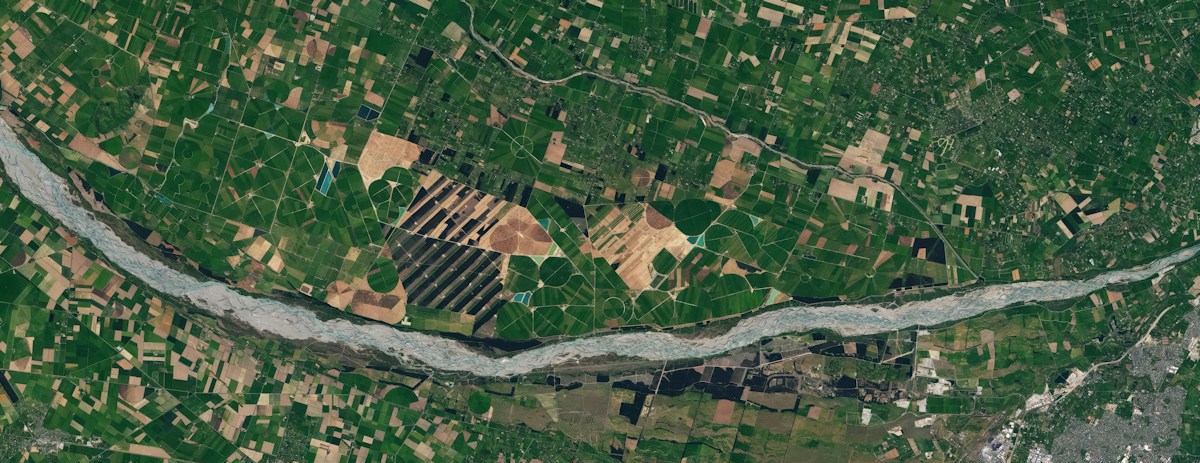

The same rivers still work the same way. Each leaves the mountains through a narrow gorge, the Waimakariri Gorge or the Rakaia Gorge below Mount Hutt, then spreads into a braided bed of shifting channels separated by gravel bars. The Rakaia, 150 km long, carries a mean flow of 203 m³ per second; the Rangitata drains 1,773 km² and averages 95 m³ per second. South of the Waitaki the rivers change character, running in narrower, well-formed channels instead of spreading across wide shingle beds, a contrast that marks where the Canterbury Plains give way to the plains of North Otago.
Rising seas, Kaitorete Spit and the wandering Waimakariri: the last 10,000 years
When the ice melted, the sea rose fast and drowned what is now the continental shelf, pushing the coastline rapidly westward and eating the seaward edge of the plains. About 10,000 years ago the shore had reached roughly the area now occupied by Lake Ellesmere / Te Waihora. Because the coast was made of loose sand and gravel from the Rakaia and Waimakariri fans, powerful southerly waves in the Canterbury Bight eroded it and longshore drift carried the material north towards Banks Peninsula.
That drift built Kaitorete Spit, a gravel barrier running 25 km west from Banks Peninsula, less than 100 m wide at its western tip and 3.5 km at its widest. Behind it, a former part of the plains became first a bay, then an estuary and finally a lake. Lake Ellesmere / Te Waihora, a shallow brackish lagoon of 198 km², is now New Zealand’s fifth-largest lake, and more than 200 bird species, counting extinct ones, have been recorded on and around it.
North of the peninsula the rivers shaped the coast directly. The Waimakariri, Ashley / Rakahuri and Waipara rivers supplied almost all the sediment of Pegasus Bay and its coastal plain, a curve of sandy shore about 50 km long. The Waimakariri also moved. Geological evidence shows that at different times it flowed through the site of Christchurch into what is now the Avon Heathcote Estuary, and at another time south into Lake Ellesmere. In February 1868 it flooded Christchurch, leaving Market Place, now Victoria Square, under water, and the Canterbury Rivers Act of the same year began the flood protection works that now line its banks north of the city.
The youngest event is barely a decade and a half old. At 4:35 am on 4 September 2010, a magnitude 7.1 earthquake near Darfield ruptured the Greendale Fault, which no one had known about because the last glaciation had buried its trace under gravel. The surface rupture offset roads, fences and other features by as much as 4 metres. A magnitude 6.3 aftershock under Christchurch on 22 February 2011 killed 185 people, and liquefaction of the water-saturated alluvial sediments beneath the city, flagged as a hazard in a 1991 study, added to the damage.
What the gravels built: aquifers, braided-river birds and farms from Rangiora to Timaru
Gravel stores water. Beneath the eastern plains and Christchurch, layers of gravel separated by fine sediment form an artesian aquifer, and its pressure feeds springs that give rise to the Avon / Ōtākaro and Ōpāwaho / Heathcote rivers in the city’s western suburbs. Christchurch draws naturally filtered water from this aquifer through more than 50 pumping stations, historically without treatment, although about 70% of the supply has been temporarily chlorinated since 2018 while well-heads are upgraded. The same porosity makes some rivers vanish. The Selwyn / Waikirikiri flows all year in the foothills, but on the plains its bed leaks into the aquifer, and in most months all its water disappears within 5 km of leaving the hills, leaving the next 35 km dry for most of the time.
The wide shingle beds are a habitat in their own right. The wrybill, a small grey plover and the only bird in the world whose bill curves sideways, breeds only on large braided rivers in Canterbury and Otago, mainly the Waimakariri, Rakaia, Rangitata, Waitaki and Ashley, where shifting channels keep the gravel free of weeds; the Rakaia alone holds about 73% of the population. The same river is an Important Bird Area for breeding black-billed gulls and is known for its Chinook salmon. Black-fronted terns nest on dry sections of the Waimakariri, which also shelters the critically endangered Canterbury mudfish, a fish that once lived in wetlands across the plains.
People arrived on a landscape already changed by fire. Before Māori settlement in the 13th century much of the region was scrub and beech forest; fires replaced it with tussock grassland, and by the 1860s European settlers were running three million sheep across Canterbury. The plains sit in the rain shadow of the Alps, and the hot, dry nor’wester, announced by the arch of cloud over the mountains, makes them prone to drought. Irrigation has followed, and with the growth of dairy farming water has become contested: lowland streams are polluted, some aquifers are overdrawn, and the Central Plains Water scheme proposes taking up to 40 m³ per second from each of the Rakaia and Waimakariri. Towns are strung along State Highway 1 and the Main South railway from Kaiapoi through Christchurch, Rakaia, Ashburton and Temuka to Timaru, crossing the Rakaia on bridges about 1.75 km long, New Zealand’s longest road and rail bridges.
Every one of those settlements stands on gravel that was greywacke in the Southern Alps a few tens of thousands of years ago. To follow the plains back to their source, read our guide to the Southern Alps, or set them in the wider country with our overview of New Zealand’s geography.
