The Shinkansen is Japan's network of dedicated high-speed railway lines, the first in the world, which opened between Tokyo and Shin-Osaka on 1 October 1964. Today it runs about 3,000 kilometres of track from Hokkaido to Kyushu, carries more than 400 million passengers a year at up to 320 kilometres per hour, and in six decades has never had a passenger killed in a derailment or collision.
Japan's Bullet Train in Numbers
- Opened: 1 October 1964, nine days before the Tokyo Olympics, with the 515-kilometre Tokaido Shinkansen between Tokyo and Shin-Osaka.
- Network: nine full lines plus two "mini-shinkansen" lines that run high-speed trains over upgraded conventional track, about 3,000 kilometres in all.
- Top speed in service: 320 kilometres per hour on the Tohoku Shinkansen north of Tokyo; 285 on the Tokaido line, which is older and curvier.
- Fastest Tokyo to Shin-Osaka: 2 hours 21 minutes on the quickest Nozomi services, against 4 hours when the line opened.
- Busiest line: the Tokaido carries around 170 million passengers a year, with Nozomi trains departing Tokyo as often as every 3 to 5 minutes at peak times.
- Track gauge: standard 1,435 millimetres, unlike the 1,067-millimetre narrow gauge used by almost all other Japanese railways, which is why Shinkansen trains cannot run on ordinary lines.
- Safety record: zero passenger fatalities from accidents since 1964, across well over 10 billion journeys.
How the Tokaido Line Got Built
By the 1950s the old Tokaido main line between Tokyo, Nagoya and Osaka, the corridor that holds most of Japan's people and industry, was saturated. Shinji Sogo, president of Japanese National Railways, and his chief engineer Hideo Shima proposed something no country had tried: a brand-new line built only for passenger trains, on standard gauge, with no level crossings, gentle curves of at least 2,500 metres radius and electrification at 25,000 volts. Critics called it a white elephant in the age of the car and the jet; Sogo deliberately understated the cost to get it approved and secured an 80-million-dollar World Bank loan in 1961 partly to make the project too embarrassing to cancel.
The final bill came to around 380 billion yen, roughly double the budget, and both men resigned in 1963 before the line opened. Neither was invited to the opening ceremony. But the 0 Series trains, running at 210 kilometres per hour, cut Tokyo to Osaka from six and a half hours to four, and to 3 hours 10 minutes from the following year. The line carried its 100-millionth passenger within three years and was profitable almost at once. The name means "new trunk line"; the English nickname "bullet train" came from the pre-war plan, the dangan ressha, and from the shape of the 0 Series nose.
The Network Today, Line by Line
The lines fan out from Tokyo and are run by four of the private JR companies that succeeded Japanese National Railways in 1987.
- Tokaido (1964) and Sanyo (extended to Hakata in Fukuoka in 1975): together 1,069 kilometres from Tokyo to Kyushu, the spine of the system, run by JR Central and JR West.
- Tohoku (1982, reaching Shin-Aomori in 2010): the fastest line, where E5 Series Hayabusa trains run at 320 kilometres per hour. The Yamagata and Akita mini-shinkansen branch off it.
- Joetsu (1982) to Niigata on the Sea of Japan coast, through the 22-kilometre Daishimizu Tunnel.
- Hokuriku (1997 to Nagano for the Winter Olympics, 2015 to Kanazawa, 16 March 2024 to Tsuruga), with a final extension to Osaka still unfunded.
- Kyushu (2004 to 2011) from Hakata to Kagoshima, and the 66-kilometre Nishi-Kyushu line to Nagasaki, opened on 23 September 2022, which is not yet connected to the rest of the network.
- Hokkaido (2016) to Shin-Hakodate-Hokuto through the 53.85-kilometre Seikan Tunnel under the Tsugaru Strait, where trains slow to 160 kilometres per hour to share the tunnel with freight. The extension to Sapporo, originally due in 2030, has slipped to the late 2030s.
The newest trains are JR Central's N700S, introduced in 2020, and JR East's E8 for the Yamagata line; its ALFA-X test train is designed for 360 kilometres per hour in service and has reached 382 on trials.
Why It Runs on Time and Has Never Lost a Passenger
The safety record rests on the original design choice: dedicated track with no crossings, no freight and no slower trains, and an automatic train control system that applies the brakes if a driver exceeds the permitted speed. Earthquakes are the main threat, and since 1992 the network has used a system that detects the fast but harmless P-waves of a quake and cuts power to trains seconds before the destructive S-waves arrive. When a magnitude 6.8 earthquake hit Niigata on 23 October 2004, a Joetsu train derailed at 200 kilometres per hour, the first ever Shinkansen derailment in service, and nobody was hurt. During the magnitude 9.0 Tohoku earthquake of 11 March 2011, 27 trains were running on the Tohoku line and every one stopped safely.
Punctuality is measured in seconds. JR Central reports the average delay per Tokaido train, including delays caused by typhoons, snow and earthquakes, at around a minute, and in some years under one. That depends on the turnaround at Tokyo station, where cleaning crews from the subsidiary Tessei have seven minutes to clean a 1,300-seat, 16-car train and rotate every seat to face forward before it departs again. Track geometry is checked by a yellow diagnostic train nicknamed Doctor Yellow that runs the line at full speed every ten days; JR Central retired its set in January 2025 and now fits sensors to ordinary N700S trains instead.
Kingfisher Noses and Tunnel Boom: The Engineering

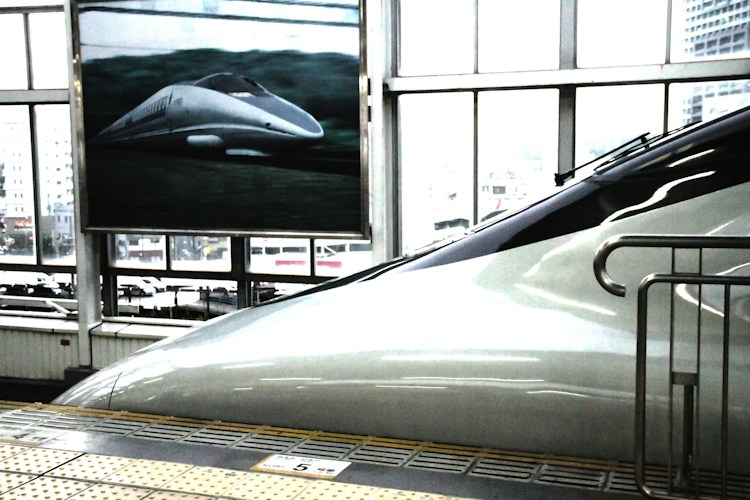

The distinctive beak of modern Shinkansen trains solves a problem that only appeared once trains got fast enough. About half of the Sanyo line is in tunnels, and a train entering one at 300 kilometres per hour pushes a wave of compressed air ahead of it that bursts out of the far end as a loud bang, a tunnel boom that rattled windows hundreds of metres away. Eiji Nakatsu, the JR West engineer leading the 500 Series design in the 1990s and a keen birdwatcher, modelled the nose on the beak of a kingfisher, which slices from air into water with barely a splash. The 15-metre nose cut the boom, reduced air resistance and lowered electricity use. The same team shaped the pantograph supports after the serrated wing feathers of an owl to cut wind noise.
Later designs added active suspension, which uses sensors and actuators to cancel sway, and a 1-degree body tilt on the N700 that lets it take the Tokaido line's curves 15 kilometres per hour faster than its predecessors. Trains are built as light as possible from aluminium, with motors on most axles rather than a single locomotive, so they accelerate quickly and brake gently. Regenerative braking feeds power back into the overhead line. The trade-off is that nothing on a Shinkansen is interchangeable with the rest of Japan's railways, which is why the network grows only as fast as new dedicated track can be built.
Shinkansen Versus France's TGV and China's High-Speed Rail
- Age: Japan opened in 1964; France's TGV between Paris and Lyon in September 1981; China's first dedicated high-speed line in 2008.
- Size: China operated more than 45,000 kilometres of high-speed line at the end of 2024, more than the rest of the world combined and about fifteen times Japan's network. France has about 2,800 kilometres of dedicated line.
- Speed in service: China's Fuxing trains run at 350 kilometres per hour on the Beijing to Shanghai line, the TGV at 320, the Shinkansen at 320.
- Speed records: a modified TGV holds the wheel-on-rail record at 574.8 kilometres per hour, set on 3 April 2007. Japan's L0 Series maglev holds the overall rail record at 603 kilometres per hour, set on 21 April 2015.
- Design philosophy: the TGV uses power cars at each end and runs onto conventional track to reach city centres; the Shinkansen uses distributed motors and never leaves its own track. China borrowed from both, and from Germany's ICE, before developing its own trains.
- Exports: Shinkansen technology runs on Taiwan's high-speed line, opened in 2007, and is being built into India's 508-kilometre Mumbai to Ahmedabad line; the TGV was the basis for Spain's AVE and South Korea's KTX.
Where Japan still leads is frequency and reliability on a single corridor. No other railway anywhere runs trains of 1,300 seats at three-minute headways all day. A line-by-line ranking is in our post on the fastest trains in the world, and the networks are weighed against each other in high-speed rail systems compared.
Riding It: Passes, Seats and the Fuji Window
Foreign visitors can buy a Japan Rail Pass, which since the price rise of October 2023 costs 50,000 yen for seven days in ordinary class. It covers every Shinkansen except the fastest Nozomi and Mizuho services on the Tokaido, Sanyo and Kyushu lines, which require a supplement; the Hikari, which stops a few more times, takes about half an hour longer between Tokyo and Osaka. Trains have unreserved, reserved, Green Car (first class) and, on the Tohoku and Hokuriku lines, Gran Class seats. Heading west from Tokyo, ask for a window seat on the right-hand side, seat E in standard class, for the view of Mount Fuji about 40 minutes out, weather permitting. Station bento boxes, called ekiben, are part of the ritual, and eating at your seat is expected, while phone calls are taken in the vestibules.
The next chapter is already under construction. The Chuo Shinkansen is a superconducting maglev line that will run 286 kilometres from Shinagawa in Tokyo to Nagoya in about 40 minutes, almost entirely in tunnel, and eventually on to Osaka in 67 minutes. The Nagoya section was due to open in 2027, but a long dispute with Shizuoka Prefecture over the tunnel's effect on the Oi River delayed work, and JR Central now expects it no earlier than 2034. When it opens, the 1964 route will become the slow line. The technology is explained in our guide to maglev trains around the world, and the terrain the tunnels pass through in the geography of Japan.
